Application
Description

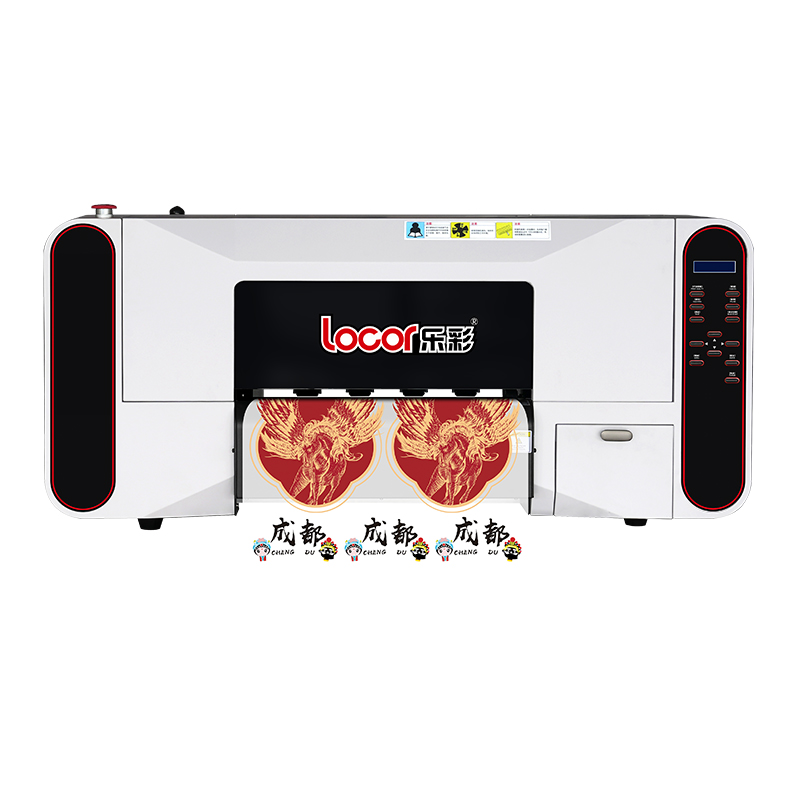

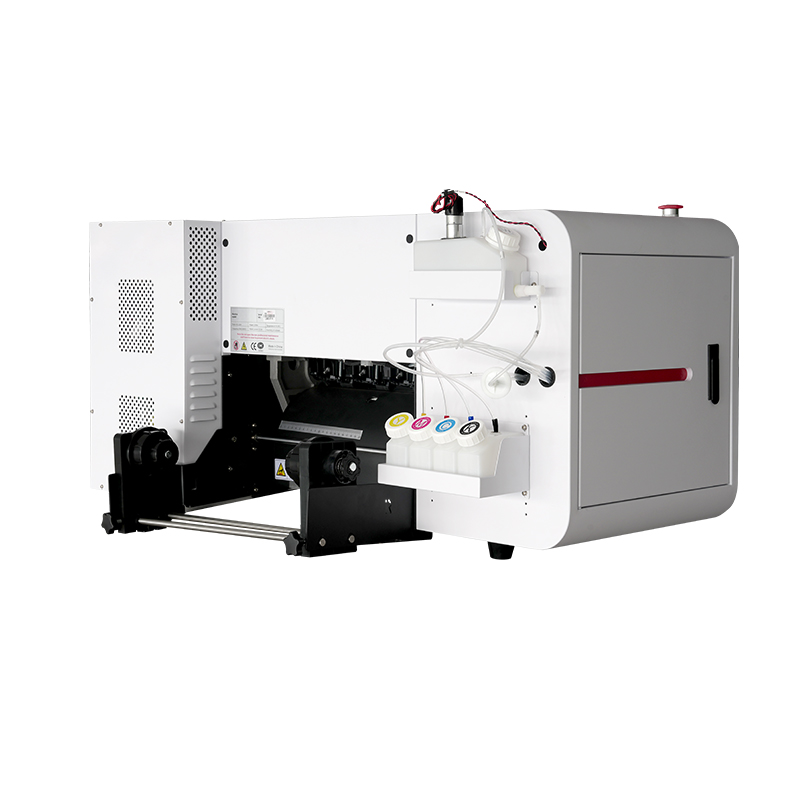

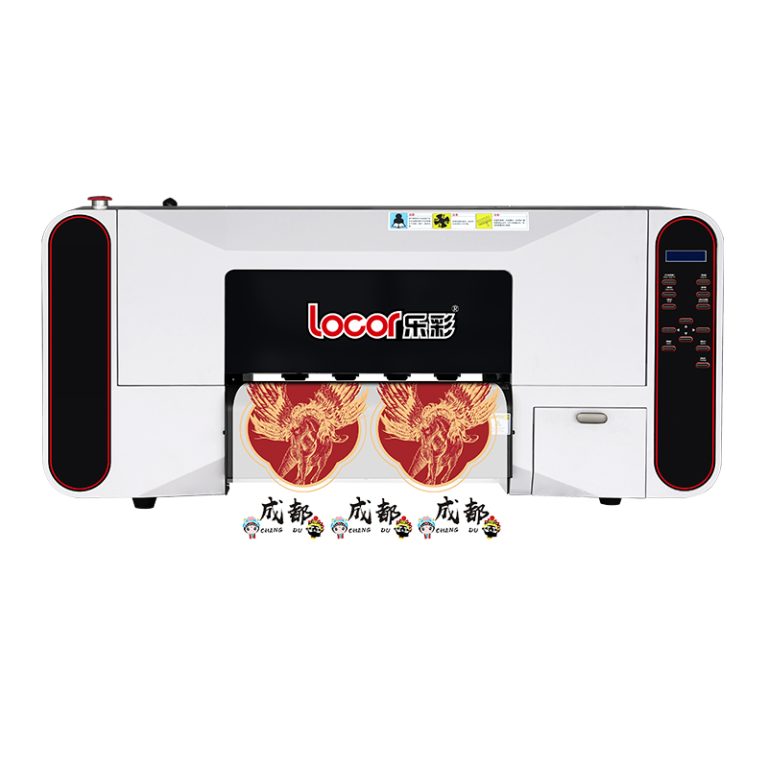

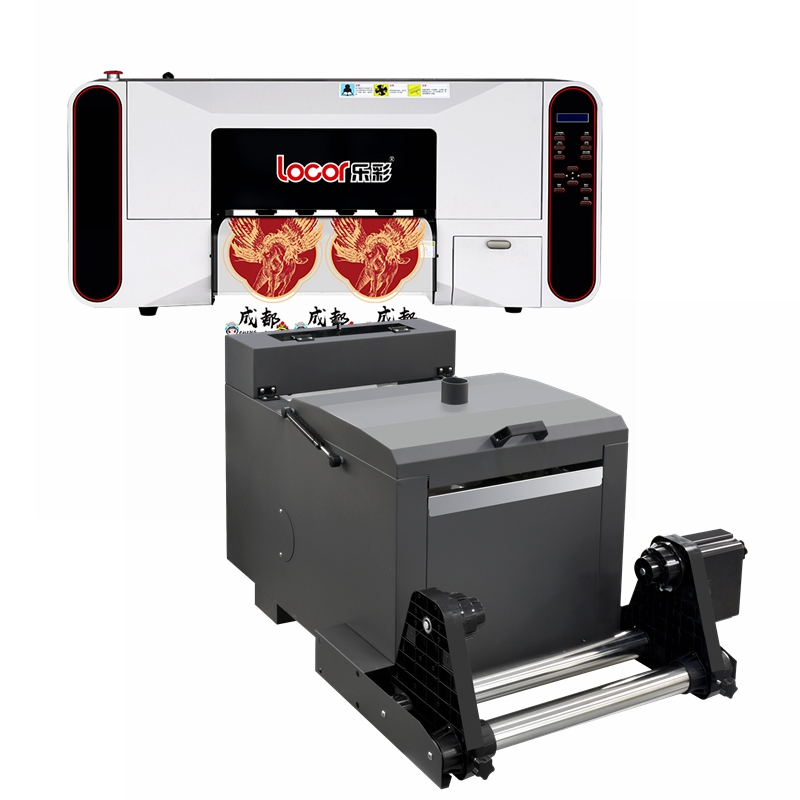

Locor A3 DTF Printing Solution has 3 parts: 1. Pigment ink Sublimation printer; 2. Shaking Powder machine; 3. Heat press and the printing consumables(Optional).
Printing Platform
300mm working width and well matched PET film; The porous design helps the material fit the platform better.

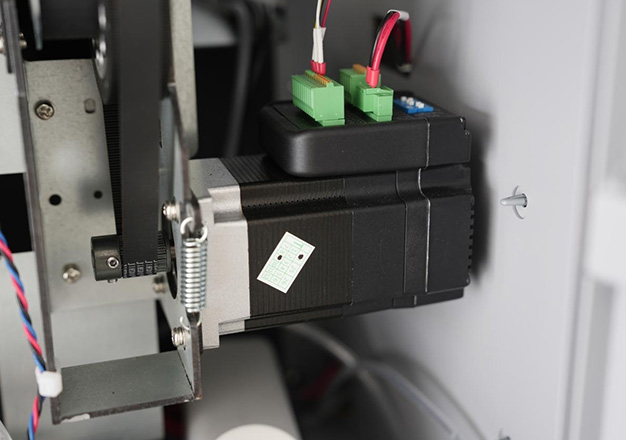

Servo Motor
This advanced component enhances print accuracy and speed, making it ideal for creating detailed and intricate designs.

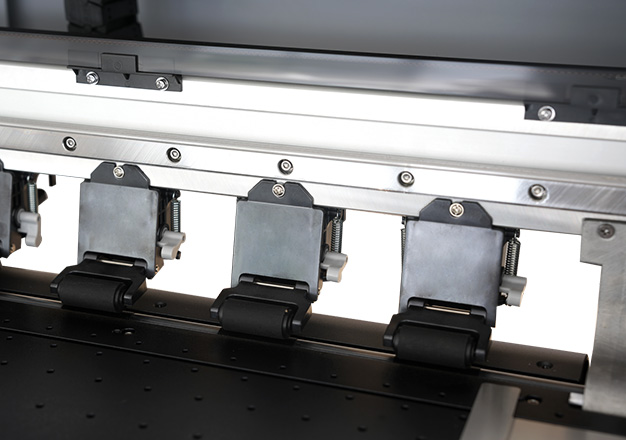

Pinch Roller
Adjustable pinch rollers are more convenient touse.
Anti-collision System
When the printer is working, once the print head carriage hits a foreign object, it will automatically stop printing.
Specifications
| LC-A3W | |
| Printhead Type | i3200-A1 / i1600-A1 / xp600 |
| Printhead Number | 2pcs |
| Printhead Height | 2-3mm |
| Cleaning | Fully Automatic Cleaning |
| Nozzle Flash | With Anti-blocking Flash Spray and Automatic Moisturizing Function |
| Ink Type | Pigment Ink |
| Ink Color | CMYK+W, Fluorescent Color Available |
| Cartridge Capacity | CMYK: 250ml W: 500ml |
| Print Effective Width | 300mm |
| MedIia | Heat Transfer PET Film |
| Operating Language | Chinese / English Operating System |
| Operating System | Win11 / Win10 / Win7 |
| Working Environment | Temperature Range:18 °C~25°C; |
| Humidity Range: 35%~65% Rh | |
| RIP Software | Maintop / Photoprint / Riin |
| Power Sarameters | AC-220V, 50Hz / 60Hz |
| Power | Standby:32W, Max:500W |
| Machine Size | 1100*675*501mm ( l*h*w) |
| Machine Net Weight | 94kg |
| Package Size | 1157*716*650mm ( l*h*w) |
| Powder Shaker | |
| Powder Feeding Control | Shake Control, Sprinkle Control, Direction and Amount Control |
| Heating and Drying Function | Far Infrared Carbon Fiber Heating Tube Heating |
| Rewind Function | Automatic Induction Winding |
| Electrical Parameters | Rated Electricity 220V, Rated Current 7A, Rated Power 1500W |
| Machine Size and Weight | 950x700x700mm/45kg |
| Packing Size and Weight | 780x400x360mm/50kg |
Why Choose Locor A3 DTF T-shirt Printer?
- Suitable for any background color and any fabric type T-shirt, such as high-elastic fabrics, nylon fabrics, chemical fabrics, swimwear, denim, PVC, EVA, etc.
- Convenient, high efficiency and low cost: One-stop hollow printing, no cutting plotter, time and labor saving.
- Consumables is cheaper and output is better than common sublimation printing, soft touch, washable and stretchable.
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
