Description

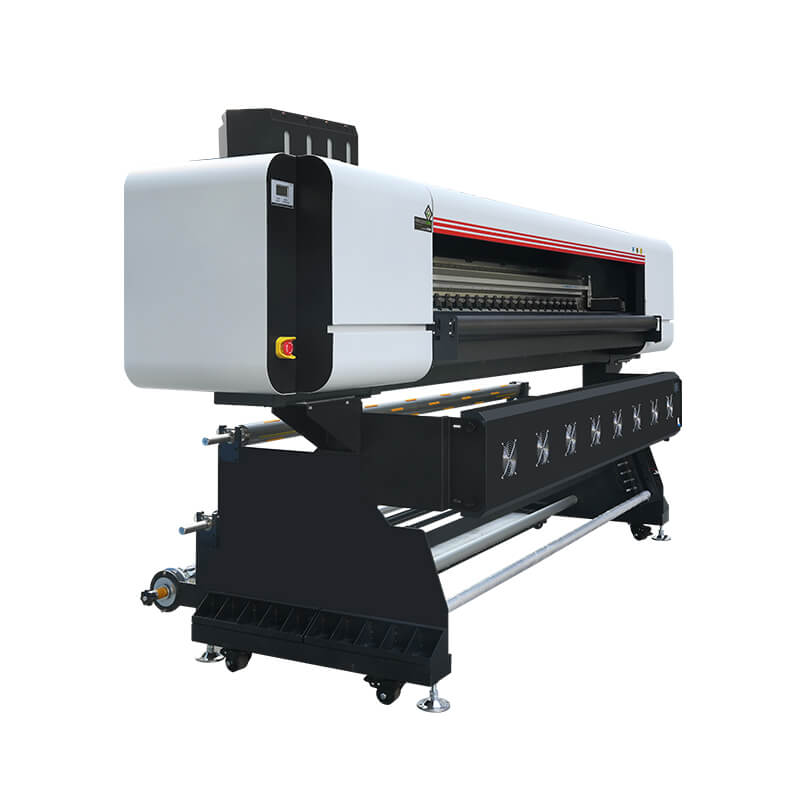

High-strength frame, large steel plate links on the side, higher stability of the whole machine, can realize kilometer paper shaft, reduce the frequency of medium replacement, and greatly save time and manpower.

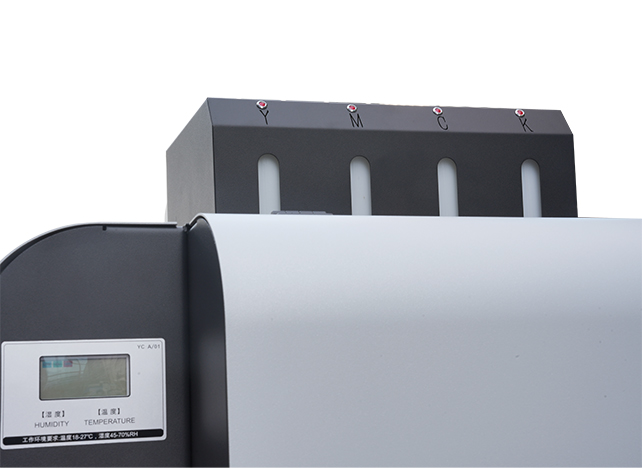

5000 ink cartridges

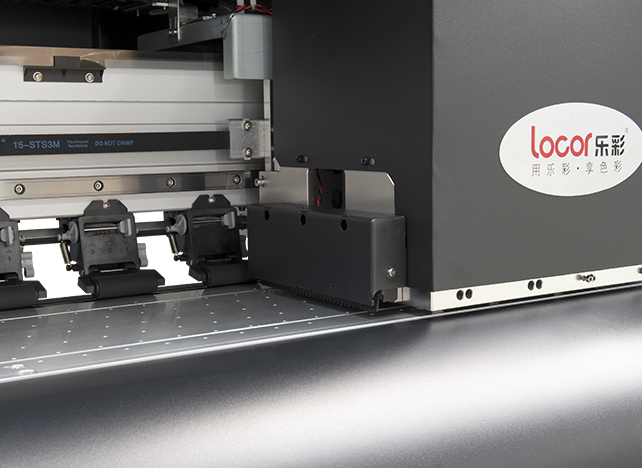

Anti-collision sprinkler
Visual temperature control fan
Air shaft retracting and extending device

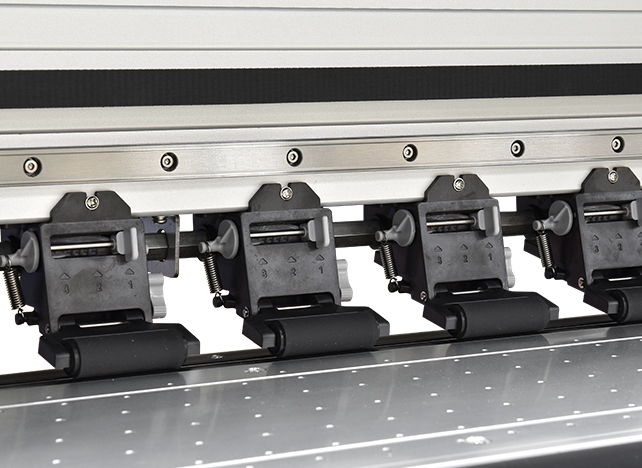

Pressing wheel + platform
High-quality metal tension rod
Specifications
| Product Model | LC-1820 | LC-2200 |
| Printhe ad Type | Epson i3200-A1 | Epsoni3200-A1 |
| Number of Printhead | 4 | 8 |
| Printhe ad Height | 2-3mm | |
| Printhead Cleaning | Fully automatic cleaning with anti-clogging,flash spraying, and automatic moisturizing functions | |
| Ink Type | Dye-sublimation ink | |
| Ink Color | Four colors(C/M/Y/K) | |
| Ink Cartridge Capacity | 5000ml per color | |
| Ink Supply Method | Negative pressure continuo us ink supplysystem | |
| Printing Width | 1820mm/2200mm | |
| Media | Heat transfer paper | |
| Maximum Roll Weight | Kilometer paper weight(optional) | |
| Take-up Device | Air shaftautomatic winding and unwinding system | |
| Heating System | Three-Stage Embedded Constant Temperature Heating System (Front, Middle, Rear) | |
| External Drying Configuration | Dual infraredheating with external drying fan | |
| Operation Language | Chinese/English | |
| Computer System | Win11/Win10 | |
| Operating Environment | Temperature range 18°℃C-25℃;Humidity range 35%-65% Rh | |
| Printing Interface | USB | |
| RIP Software | Maintop/Photoprint/Wasatch | |
| Power Parameters | AC-220V, 50Hz/60Hz | |
| Power(W) | Standbypower 64W,maximum power 6000W | |
| Noise Level | Standby <32dB,operating s65dB | |
| Machine Dimensions | 3500mmx1300mmx1750mm(LxWxH) | |
| Machine Net Weight | 750 Kg | |
| Package Dimensions | 3500mmx1050mmx675mm(LxWxH) | |
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
