Application
Description

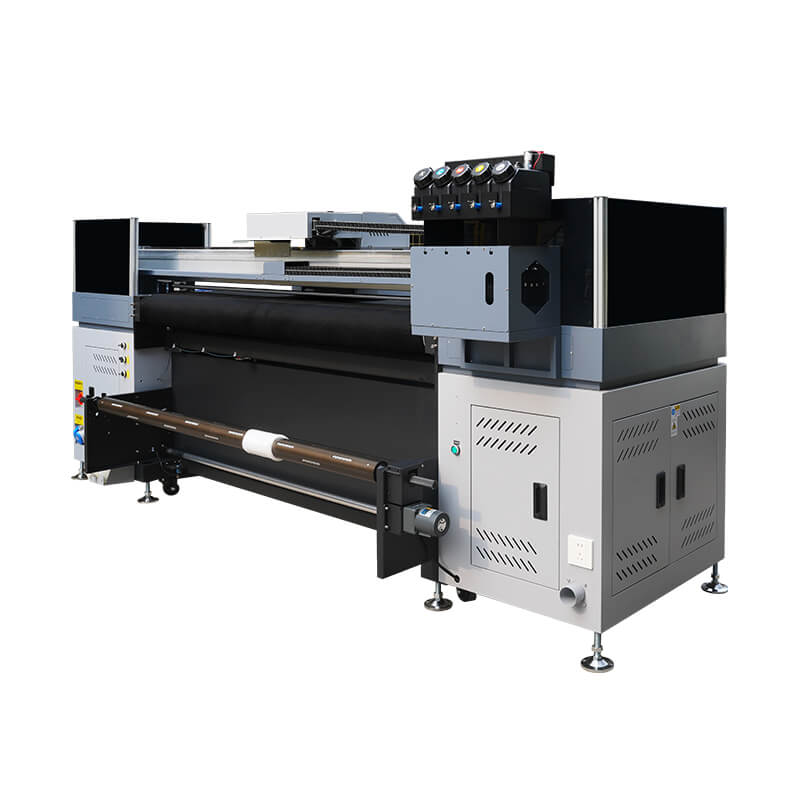

A UV printer is a type of digital printer that uses ultraviolet (UV) light to cure or dry the ink as it is printed. Unlike traditional printing methods, UV printers can print directly on a wide range of materials, including plastic, glass, metal, wood, and acrylic. The UV-curable inks are exposed to UV light, which instantly hardens the ink, producing vivid, durable, and scratch-resistant prints. UV printers are commonly used for signage, promotional items, packaging, and custom products.

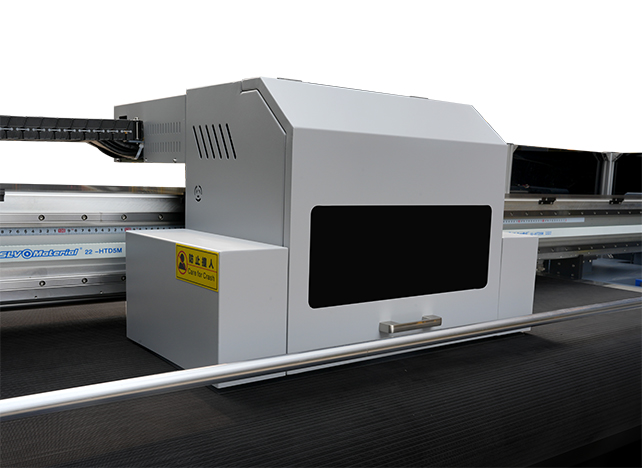

Collision Prevention

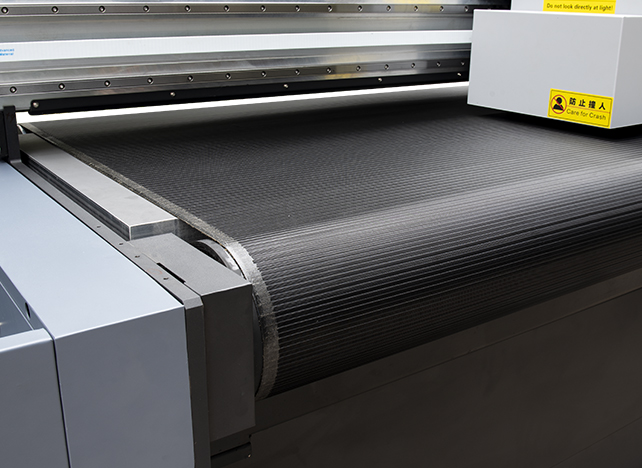

Mesh Belt

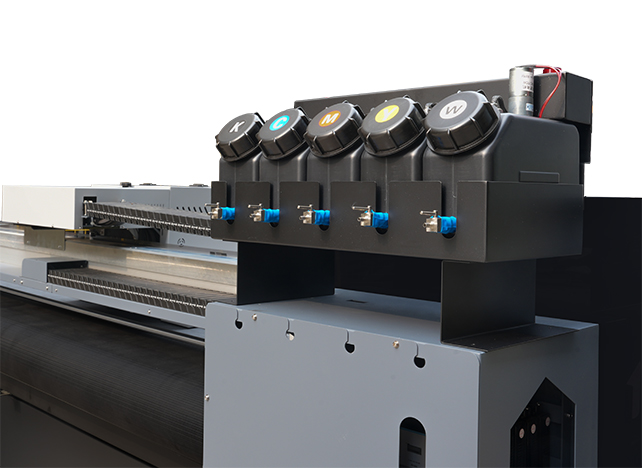

White ink agitator + ink shortage alarm

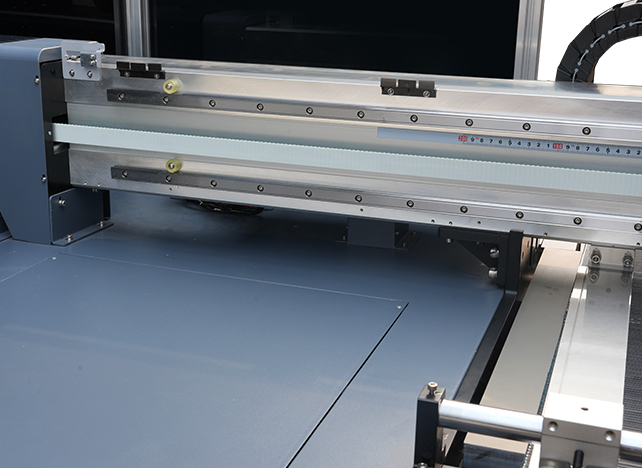

Imported THK Noiselss Guide Rail

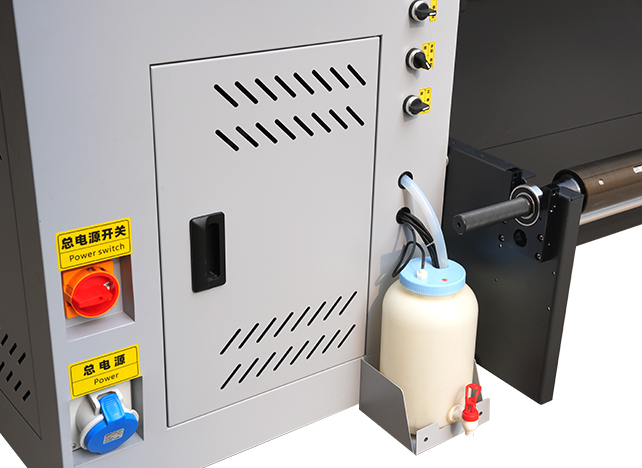

Waste ink bottle
Air Shaft + Dual-Rod System
Specifications
| Product Model | W-1800 |
| Printhead Type | Epson i3200-U1 |
| Number of Printheads | 1-6 Pcs |
| Printhead Height | 0-80mm |
| Printhead Cleaning | Full Automatic Cleaning: Strong, Medium, Weak |
| Ink Type | UV Ink |
| Ink Colors | K\C\M\Y\W–Lc Lm Lk LLK R |
| Ink Cartridge Capacity | 3500ml per color |
| Ink Supply Method | Negative Pressure Continuous Ink Supply System |
| Printing Width | 1820mm |
| Printing Direction | Bidirectional Printing |
| Printing Mode | Color-White-Color\Color-White\White-Color\Color1\Color2 (LED UV) |
| Media | 13200-U1: Suitable for transparent glass stickers, transparent PVC films, 3P cloth, etc. I3200-A1/E1: Suitable for wall coverings, leather, etc. |
| Paper Take-Up System | High-Power Automatic Roll-to-Roll System |
| Front Quality Inspection | LED Light Guide Panel |
| Computer Requirements | CPU: 15 | Memory: 8GB or above |
| Computer System | Windows 11/Windows 10 |
| Printing Interface | USB 3.0 |
| RIP Software | MainTop 7.0 UV Edition, PhotoPrint 19 Edition |
| Power Parameters | AC 220V, 50Hz/60Hz, 10A |
| Power (W) | 2000W |
| Noise Level | Standby Noise < 32dB, Operating Noise ≤ 65dB |
| Machine Dimensions | Main Top 7.0 UV Edition, PhotoPrint 19 Edition |
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
